Products Name: AS-BNUL-200 SCHNEIDER

PRODUCT DESCRIPTION

If a moderate percentage of non-permanent faults is present in a system, two or more shots are justified. If fused ‘tees’ are used and the fault level is low, the timer of the fuses may not discriminate with the main IDMT relay: several shots are usefull. This would not warm up the fuse to a such extent that it would eventually blow before the main protection operated.

Description:

Setpoint Dial Range: Dual marked 35 to 60°F (1.7 to 15.5°C).

Sensing Element: Vapor pressure type, copper construction.

Response: To lowest temperature sensed by any one-foot section of its element. Altitude

causes the control to operate approximately 1°F colder per 1000 ft. of elevation.

Differential: 5°F (3°C) fixed.

Electrical Switch: Snap action SPDT or DPST. Refer to Table-1.

Ratings, Refer to Table-1 and Table-2.

Connections:

TC-52xx, Screw terminals.

Mounting: In any position on any surface not subject to excessive vibration.

Housing: Molded gray PVC plastic cover with a zinc-plated steel main enclosure with a 1/2

in. conduit opening.

Ambient Temperature Limits:

Shipping and Storage, -40 to 150°F (-40 to 66°C).

Operating, Must be 5°F (3°C) above setpoint to a maximum of 150°F (66°C) at case.

Thermal Sensing Element, 300°F (149°C).

Humidity:

Enclosure, 5 to 95% RH, non-condensing.

Thermal Sensing Element, 0 to 100% RH.

Enclosure Rating: NEMA Type 1.

Dimensions:

Case, 2.7 H x 3.44 W x 1.97 D in. (69 x 87 x 50 mm).

Element, 3/32 in. O.D. x 20 ft. length (2.4 mm x 6.1 m).

Agency Approvals: UL 873 Temperature-Indicating and -Regulating Equipment and CSA

Certified.

Table-1 Model Chart.

Table-2 DC Ratings for TC-5232 Only.

Model

Number Device Type Electrical

Switch

Voltage

Vac

Full

Load

Amps

Locked

Rotor

Amps

Pilot

Duty

(VA)

Non-Inductive

Amps

TC-5231 Low temp

auto reset SPDTe

24a — — 100 16

120

17 102 720 24 208

240c

277 — — — 7.2

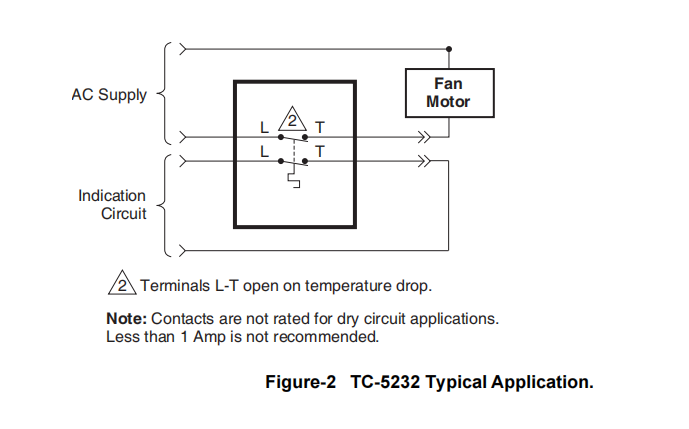

TC-5232 Low temp

auto reset DPSTd

24a — — 100 16

120c

24 144 125 24 208c

240c

277 — — — 7.2

TC-5241 Low temp

manual resetb SPDTe

24a — — 100 16

120

17 102 720 24 208

240c

277 — — — 7.2

a Less than 0.5 Amp is not recommended.

b Reset cannot be accomplished until the sensed temperature is at least 5°F above setpoint.

c Full load and locked rotor ratings are suitable for hermetic compressors only.

d Limit two separate circuit loads with common return to < 5885 VA. Only one load may be a motor load. e Do not exceed pilot duty rating on one side of switch.

Volts FLA LRA NIA PD VA

120 4.6 46 3 57.5

240 2.3 23 0.5 57.5

600 — — — 57.5
