BMEP584020 SCHNEIDER

Brand: Schneider

Model number: BMEP584020

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.40kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

BMEP584020   SCHNEIDER

INQUIRE NOW

Products Name: BMEP584020 SCHNEIDER

PRODUCT DESCRIPTION

This specific counter avoids a frequent operation of a CB in case of frequent intermittent fault. The numbers of shoot can be adjusted from 1 to 100 in the cell “Max cycles nb”, settable in a time period from 10min to 24 hours.

Description:

CALCULATION OF TRIP CURRENT

RATING

Trip Current Rating – Trip current rating is a

nominal value which approximates the minimum

current to trip an overload relay in an ambient

temperature, outside of the enclosure, of 40°C

(104°F). In all selection tables, except Class 8198

the trip current rating is 1.25 times the minimum

full load current shown for the thermal unit

selected. For Class 8198, the trip current rating is

1.15 times the minimum full load current. This

applies to bimetallic overload relays with the trip

adjustment set at 100 percent.

Calculation Procedure

1. Use the selection table for the specific

controller involved.

2. Find the minimum motor full load current listed

for the thermal unit in question.

3. Multiply that current by 1.25 (1.15 for Class

8198). The result is the trip current rating.

Example 1: Determine the thermal unit selection

and trip current rating for thermal units in a Class

8536 Type SCG3 Size 1 magnetic starter used to

control a three-phase, 1.15 service factor motor

with a full load current of 17.0 Amperes, where the

motor and controller are both located in a 40°C

(104°F) ambient temperature.

1. From Table 13 the proper selection is B32.

2. The minimum motor full load current is 16.0

Amperes.

3. Trip current rating is 16.0 x 1.25= 20.0

Amperes.

Protection Level is the relationship between trip

current rating and full load current. Protection

level, in percent, is the trip current rating divided

by the motor full load current times 100. In

Example 1 the protection level for the B32 thermal

unit is: 20.0/17.0 x 100=118%.

National Electrical Code, Section 430-32, allows a

maximum protection level of 125% for the motor in

the above example.

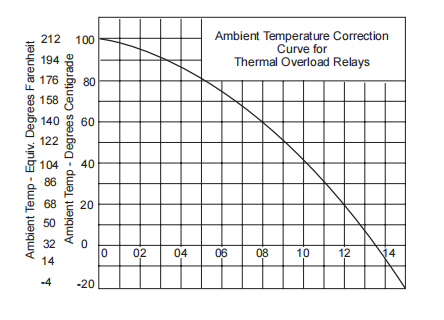

Minimum Trip Current (also called ultimate

current) may vary from the trip current rating

value, since ratings are established under

standardized test conditions. Factors which

influence variations include: the number of

thermal units installed, enclosure size, proximity

to heat producing devices, size of conductors

installed, ambient (room) temperature, and

others.
