The protection element also provides a non-sensitive area to avoid instability due to small  asymmetries and unbalances that can generally be present in the network system. This  condition is represented by the characteristic reproduced below, where the hatched area is the tripping zone.

Description:

NOTE: Your Rack ATS is configured so the display back light turns off after 10 minutes of inactivity. Press any

display navigation button to illuminate the back light.

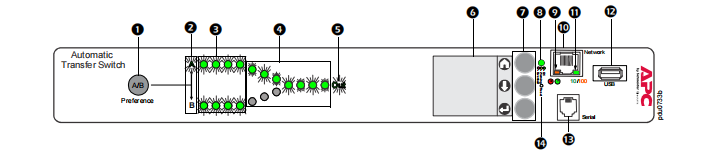

Item Function

1 Preference A/B Button Press to set a preferred source: the first press sets source A, the second

press sets source B, and the third press sets no preference.

2 Source A and B LEDs Indicate preferred source. If no source is preferred, both LEDs are

illuminated. You can also see preferred source on the LCD Display.

3 Input Connector LEDs Provide information about input voltage from each source. If the RMS

input voltage and measured frequency are within the selected tolerance

range, the corresponding indicator will be illuminated. In a normal

operating condition (full source redundancy) both sets of LEDs are

illuminated.

4 Output Connector LEDs Indicate which source is being used for the output (only one path will be

illuminated at any time). Together, the Source Preference LEDs, the

Connector LEDs, and the Output LED show the power flow through the

ATS.

5 Output LED Shows that voltage is available at the output of the ATS.

6 LCD Display View ATS status, settings, and product information. See “Front Panel

Screens” on page 12 for more information on LCD display screens.

7 Display navigation buttons On the LCD Display, icons indicate the purpose of adjacent buttons.

 Home: Press to move through monitor screens or return to monitor

screens from sub-menus.

 Down: Press to move through monitor screens or menu items.

 Select: Press to select menu items or navigate to the main menu from

monitor screens.

8 Load Status LED See “Load Status LED” on page 11

9 Network Status LED See “Network Status LED” on page 11

: 10/100 Base-T Connector Connects the ATS to the network.

; 10/100 Status LED See “10/100 Status LED” on page 11.

< USB port Use USB drives for firmware upgrades.

= Serial port Connect your computer to the ATS for local access to the command line

interface. Use the supplied Serial Communication cable (Schneider

Electric part number 940-0144A).

> Reset switch Restarts ATS network and serial communication.
