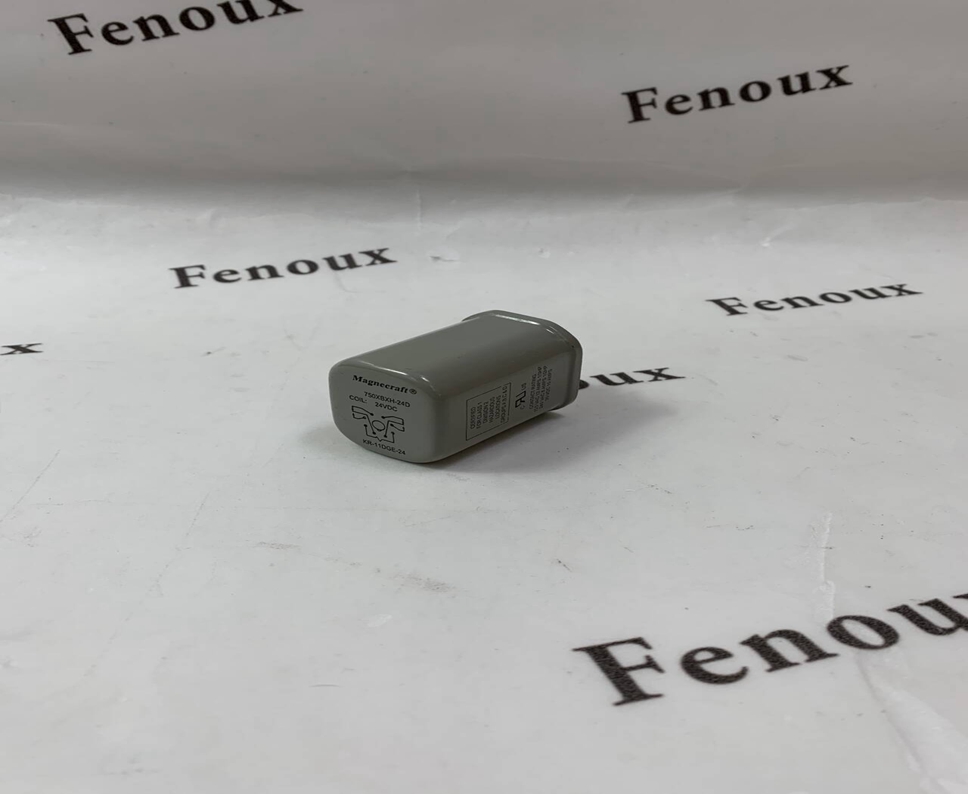

Schneider 750XBXH-24D

Input Current 12 A

Contacts Material Silver alloy contacts

Minimum Switching Current 100 mA 5 V

Coil Resistance 470 Ohm

Input Voltage 24 V DC

Drop-out Voltage Threshold >= 0.15 Uc AC

>= 0.1 Uc DC

Rated Operational Current 12 A at 120 V AC conforming to UL

12 A 240 V AC UL

12 A 28 V DC UL

Power consumption in W 1.2 W DC

Voltage Range 0.8...1.1 Un AC/DC

Maximum Switching Voltage 300 V

Motor Power HP 0.5 Hp 240 V AC 50/60 Hz

0.33 hp 120 V AC 50/60 Hz

Connections Terminals Octal terminal 8 pins)

Mounting Socket

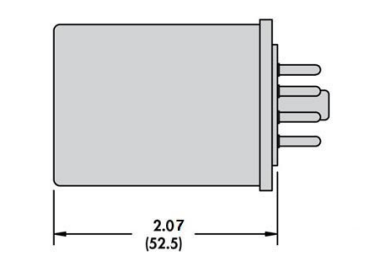

Height 2.07 in (52.5 mm)

Width 1.44 in (36.5 mm)

Depth 1.62 in (41.2 mm)

Product Weight 4.59 oz (130 g)

Operating Time 20 ms

Environment

Ambient Air Temperature for Operation -40…131 °F (-40…55 °C)

Ambient Air Temperature for Storage -40…185 °F (-40…85 °C)

Product Certifications UL

CSA

Electrical Durability 100000 cycles resistive

Mechanical Durability 10000000 cycles

IP Degree of Protection IP67

Dielectric Strength 1600 V AC between coil and contact

1600 V AC between poles

1500 V AC between open contacts

2

Shock Resistance 10 gn

Vibration Resistance 3 gn (f = 35…150 Hz)operating

+/- 1 mm (f = 10…35 Hz)operating

6 gn 35…150 Hz)not operating

+/- 1 mm (f = 10…35 Hz)not operating
