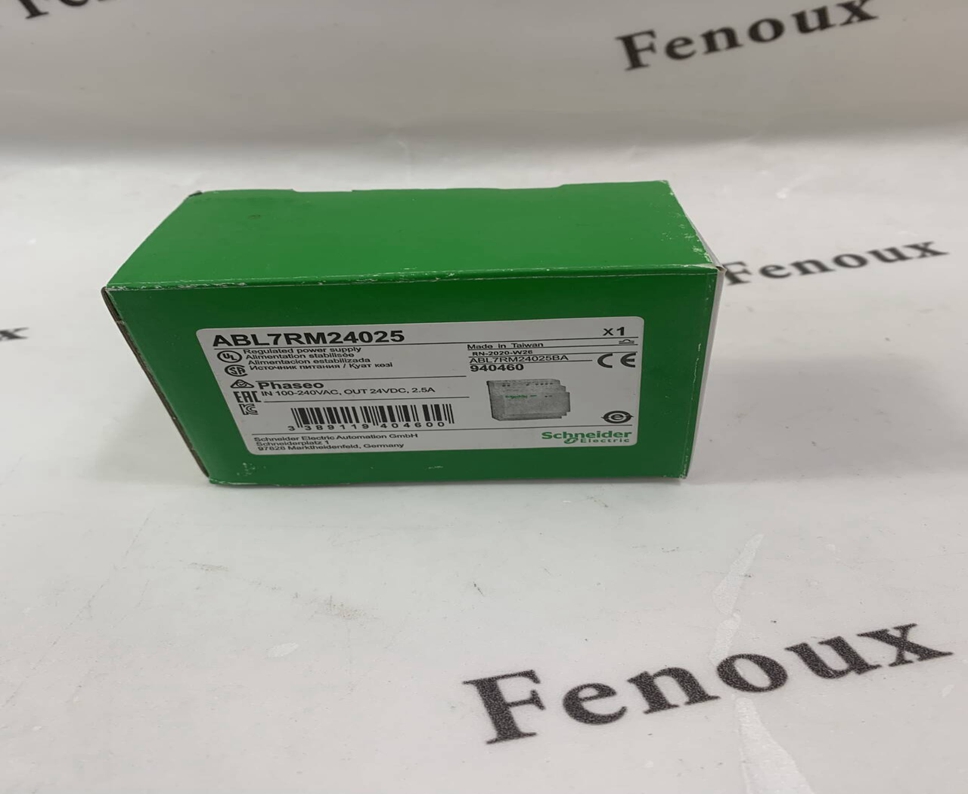

Schneider ABL7RM24025

Main

Range of product Modicon Power Supply

Product or Component Type Power supply

Power supply type Regulated switch mode

Nominal input voltage 100...240 V AC phase to phase L1-L2

100...240 V AC single phase N-L1

Input voltage limits 85...264 V AC

Kw Rating 60 W

Output voltage 24 V DC

Power supply output current 2.5 A

Anti-harmonic filter Low frequency harmonic currents

Complementary

Input protection type Integrated fuse (not interchangeable)

Inrush current 90 A

Power factor 0.5 at 24 V DC

Efficiency 84 %

Output voltage adjustment 22.2...28.8 V adjustable

Power dissipation in W 11.4 W

Current consumption 0.7 A 240 V AC

Provided equipment Power factor correction filter IEC 61000-3-2

Residual ripple 200 mV

Output protection type Against undervoltage tripping if U < 19 V

Against short-circuits

Connections - terminals Screw type terminals 2 x 0.14...2 x 2.5 mm², AWG 26...AWG 14) input connection

Screw type terminals 4 x 0.14...4 x 2.5 mm², AWG 26...AWG 14) output connection

Status LED Output voltage 1 LED Green)

Depth 2.32 in (59 mm)
