Range of product Preventa Safety automation
Product or component
type

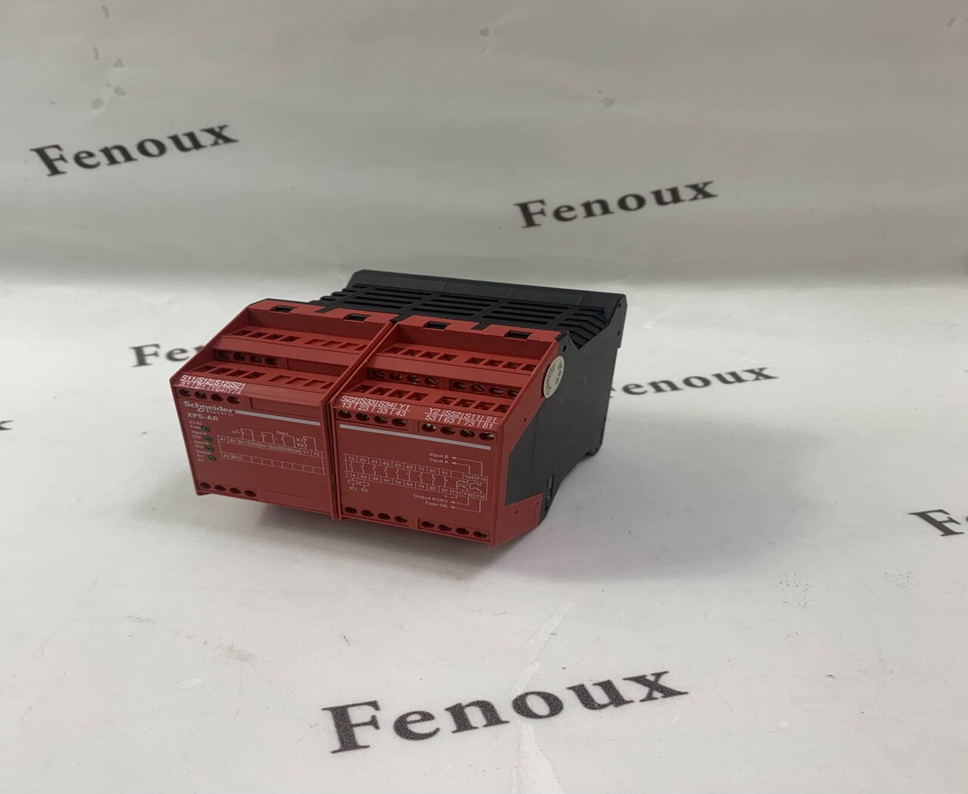

Preventa safety module
Safety module name XPSAR
Safety module application
For emergency stop, switch and safety light curtain
monitoring
Function of module Monitoring of electro-sensitive protection equipment
(ESPE)
Monitoring of a movable guard associated with 2
switches and automatic start
Monitoring of a movable guard
Emergency stop monitoring 1-channel wiring
Emergency stop with 2 NC contacts monitoring 2-
channel wiring
Multiple emergency stop monitoring 2-channel wiring
Safety level Can reach PL e/category 4 conforming to EN/ISO
13849-1
Can reach SILCL 3 conforming to EN/IEC 62061
Safety reliability data DC > 99 % conforming to EN/ISO 13849-1
MTTFd = 277.8 years conforming to EN/ISO
13849-1
PFHd = 2.22E-9 1/h conforming to EN/IEC 62061
Type of start Configurable
Connections - terminals Captive screw clamp terminals, clamping capacity: 2
x 0.5...2 x 1.5 mm² flexible cable with cable end, with
double bezel
Captive screw clamp terminals, clamping capacity:
1 x 0.14...1 x 2.5 mm² flexible cable with cable end,
with double bezel
Captive screw clamp terminals, clamping capacity: 1
x 0.14...1 x 2.5 mm² solid cable with cable end, with
double bezel
Captive screw clamp terminals, clamping capacity:
1 x 0.25...1 x 1.5 mm² flexible cable with cable end,
with double bezel
Captive screw clamp terminals, clamping capacity:
1 x 0.25...1 x 2.5 mm² flexible cable with cable end,
with double bezel
Captive screw clamp terminals, clamping capacity:
2 x 0.14...2 x 0.75 mm² flexible cable with cable end,
with double bezel
Captive screw clamp terminals, clamping capacity: 2
x 0.14...2 x 0.75 mm² solid cable with cable end, with
double bezel
Captive screw clamp terminals, clamping capacity: 2
x 0.25...2 x 1 mm² flexible cable with cable end, with
double bezel
Output type Relay instantaneous opening 7 NO, volt-free
Number of additional
circuits
2 NC + 4 solid state outputs
[Us] rated supply voltage
115 V AC (- 15...10 %)
24 V DC (- 15...10 %)
