Brand： Sensata
Model number： H25D-SS-10
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.28kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:
The H25 is the flagship of the BEI Sensors product line. It was designed
from the ground up for the industrial marketplace. The H25 offers
features such as EMI shielding, 40 lb. ABEC 7 bearings, matched thermal
coefficients on critical components, and custom high efficiency optics.
The encoder meets NEMA 4 and 13 requirements when ordered with the
shaft seal. Typical applications include machine control, process control,
the wood processing industry, oil well logging, industrial weighing,
agricultural machinery, textile equipment, web process control, robotics,
and food processing.

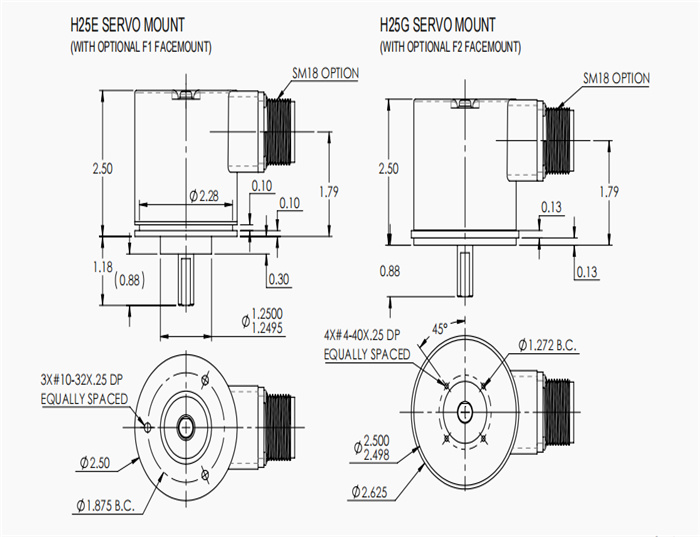

Mounting is usually done either using the D-style square flange mount, E- or G-style servo mounts, or
one of the standard face mounts, F1 for example. Consult factory for additional face mount options.
2.The shaft seal is recommended in virtually all installations. The most common exceptions are
applications requiring a very low starting torque or those requiring operation at both high temperature
and high speed.
3. Non-standard index widths and multiple indices are available by special order. Consult factory.
4. Complementary outputs are recommended for use with line driver type (source/sink) outputs. When
used with differential receivers, this combination provides a high degree of noise immunity.
5. Output IC’s: Output IC’s are available as either Line Driver (LD) or NPN Open Collector (OC) types.
Open Collectors require pull-up resistors, resulting in higher output source impedance (sink impedance
is similar to that of line drivers). In general, use of a Line Driver style output is recommended. Line
Drivers source or sink current and their lower impedance mean better noise immunity and faster
switching times. Warning: Do not connect any line driver outputs directly to circuit common/OV,
which may damage the driver. Unused outputs should be isolated and left floating. Our applications
specialists would be pleased to discuss your system requirements and the compatibility of your
receiving electronics with Line Driver type outputs.
28V/V: Multi-voltage Line Driver (7272*): 100 mA source/sink. Input voltage 5 to 28 VDC +/- 5% standard
(Note: Vout = Vin). This driver is TTL compatible when used with 5 volt supply. Supply lines are protected
against overvoltage to 60 volts and reverse voltage. Outputs are short circuit protected for one minute.
Supply current is 120 mA typical (plus load current). This is the recommended replacement for 3904R
and 7406R open collector outputs with internal pullup resistors. It is also a direct replacement for any
4469, 88C30, 8830 or 26LS31 line driver
