TriconeX 3504E

Nominal Turn-On 2-3 mA negligible

Typical Hysteresis 4 VDC 4 VDC/7 VDC

Input Delay

 OFF to ON/ON to OFF < 2 ms/< 2 ms < 10 ms/< 10 ms

Minimum Point Isolation 1500 VDC n/a

Nominal Input Impedance > 3.0 KΩ > 30 KΩ

Nominal Field Power Load

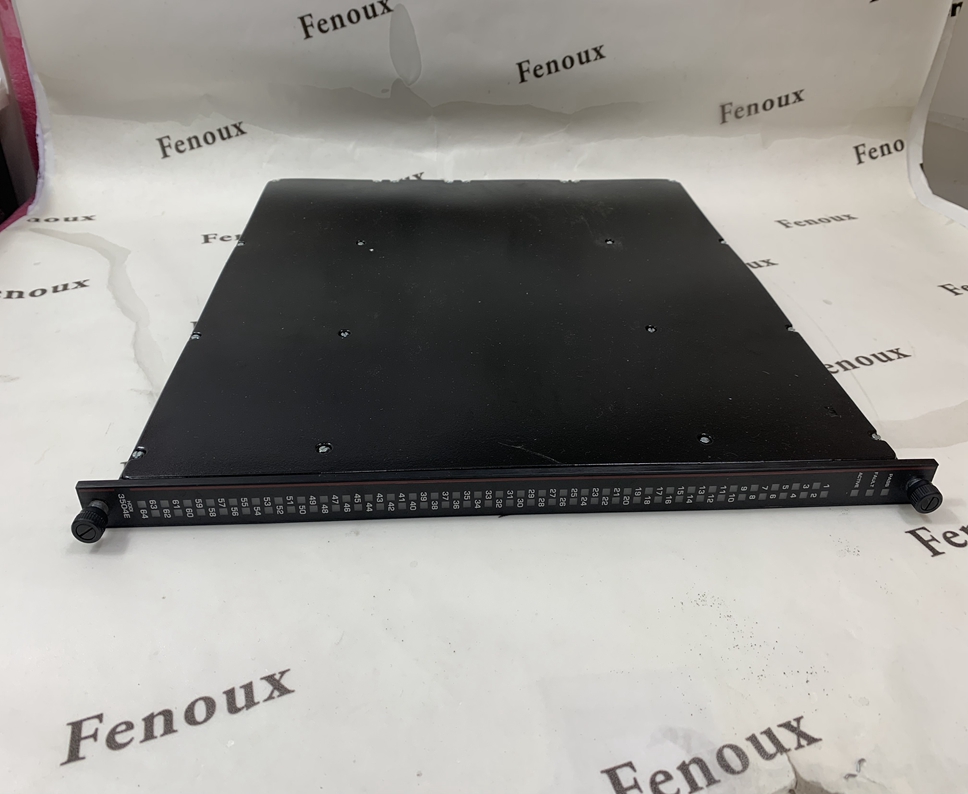

Each 64-point digital input (DI) module

has three isolated channels which independently process all data input to the

module. A microprocessor on each

channel scans each input point,

compiles data and transmits it to the

main processors on demand. Then input

data is voted at the main processors just

prior to processing to ensure the highest

integrity.

All digital input modules sustain

complete, ongoing diagnostics for each

channel. A failure on any channel activates the Fault indicator which in turn

activates the chassis alarm. A TMR

module is guaranteed to operate properly in the presence of a single fault and

may operate properly with certain kinds

of multiple faults.

All digital input modules support hotspare modules and require a separate

external termination panel (ETP) with a

cable interface to the Tricon backplane.

Each module is mechanically keyed to

prevent improper installation in a

chassis.

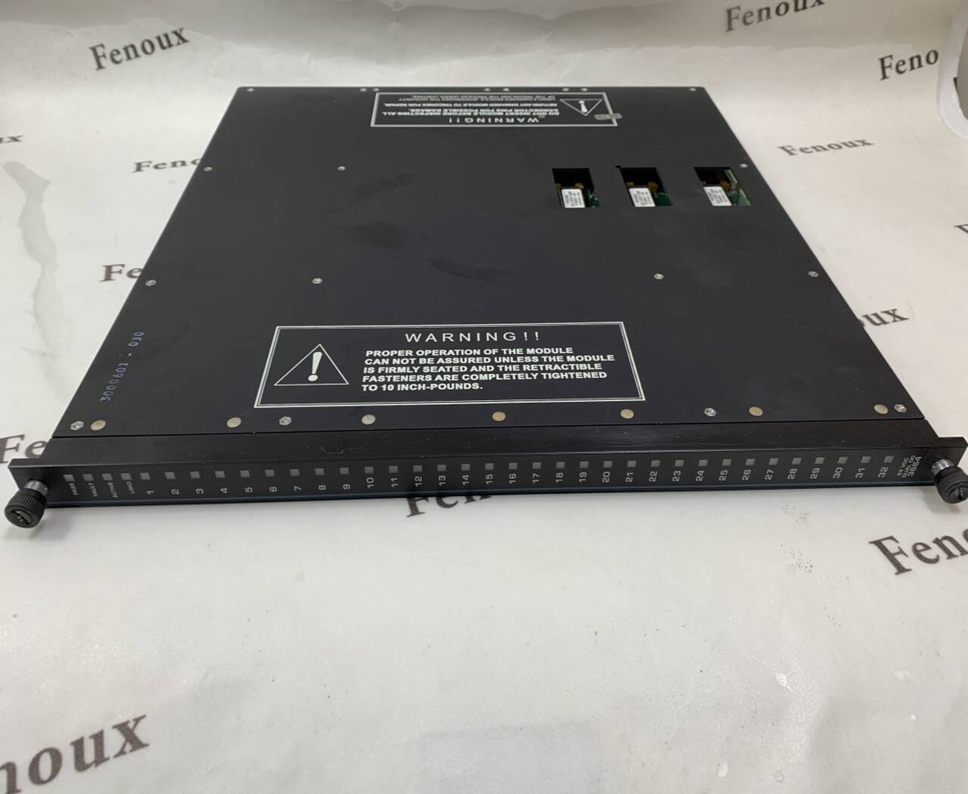

The model 3504E High Density Digital

Input Module continuously verifies the

ability of the Tricon to detect transitions

to the opposite state. On this TMR

module, all critical signal paths are 100

percent triplicated for guaranteed safety

and maximum availability. Each

channel conditions signals independently between the field and the Tricon.

The Single Digital Input Module

(model 3564) is optimized for safetycritical applications where low cost is

more important than maximum availability. On single modules, only those

portions of the signal path which are

required to ensure safe operation are

triplicated. Special self-test circuitry

detects all stuck-ON and stuck-OFF

fault conditions in less than half a

second. If a single module detects an

input fault, it reports that point as OFF,

which may cause a glitch during

switch-over to a hot-spare module.
