TRICONEX 3664

HiC modules snap onto termination boards using a plug & lock installation,

requiring no tools or wiring. The narrow interface provides the highest

possible signal density while low power dissipation keeps the cabinet cool.

HiC modules with just 12.5 mm width, providing maximum

cabinet space savings

■ 1-channel HiC modules for single loop integrity

■ 2- and 4-channel HiD modules for greater density and savings

■ Customized termination board with speciff c ELCO

connectors and H-System intrinsic safety modules for

Triconex Tricon I/O safety system

■ Prewired termination board with Tricon system cables

minimizes planning and wiring effort

Pepperl+Fuchs’ H-System isolated intrinsic safety barriers for

EcoStruxureTM TriconexTM - Tricon plug into customized

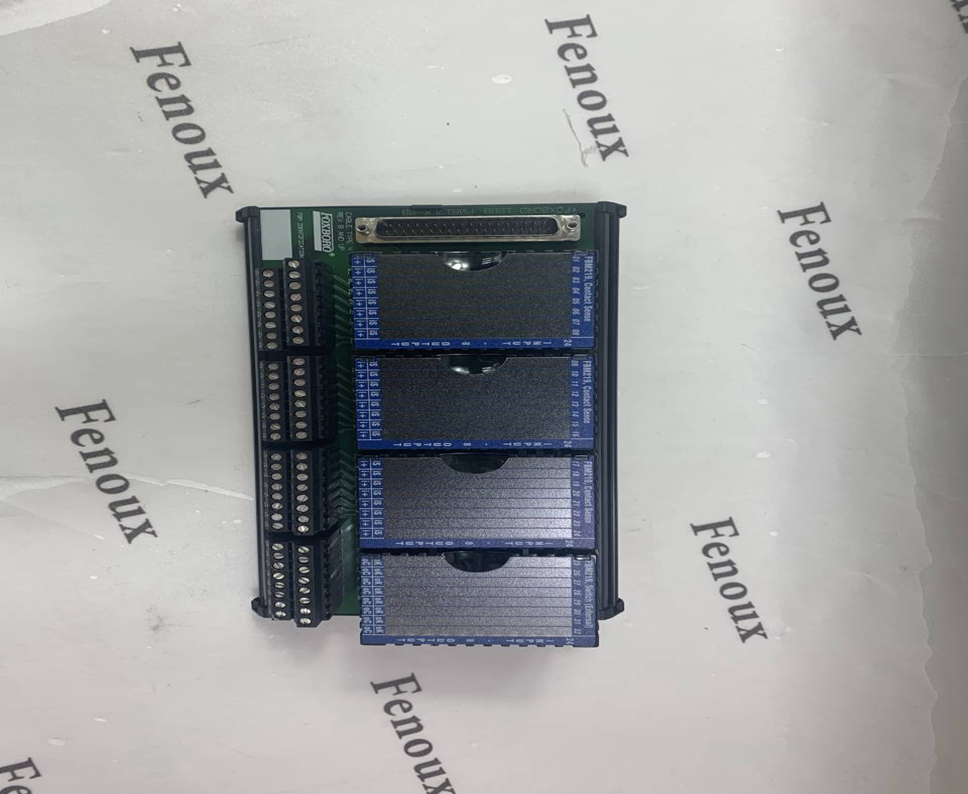

termination boards. The termination boards include the

appropriate ELCO or Sub D plug-in connector for the new

Tricon CX. H-System is the most thoroughly tested and

documented intrinsic safety solution for a DCS or ESD system.

This extensive testing ensures the highest level of safety,

reliability, and conff dence in your hazardous location ESD

system. Customized termination board solutions are also

available for EcoStruxureTM TriconexTM - Tricon and Foxboro DCS.

Certiff ed and supported worldwide, the H-System offers

the only universal barrier solution for safety and control.

HiC modules snap onto termination boards using a plug & lock installation,

requiring no tools or wiring. The narrow interface provides the highest

possible signal density while low power dissipation keeps the cabinet cool.

Termination boards are available with intrinsically safe wiring terminals

and a Triconex-specifi c ELCO plug connector to standardize the cabinet

layout and maximize spacing.

Redefi ning termination board technology

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
