This section describes the general theory of operation of the two versions of the

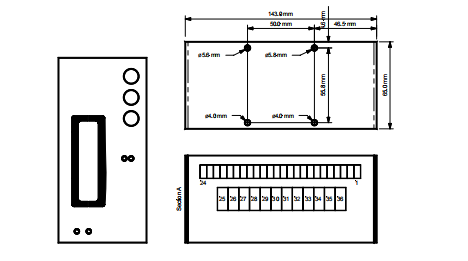

SPM-A Synchronizer. Figure 1-1 shows the SPM-A Synchronizer with voltage

matching. Figure 1-2 shows a typical synchronizer system block diagram. Figure

1-3 shows a functional block diagram of the synchronizer.

Synchronizer Inputs

The SPM-A Synchronizer checks the phase angle and frequency of the bus and

an off-line generator which is to be paralleled. The voltage inputs from the bus

and generator are first applied to separate signal conditioner circuits. Each signal

conditioner is a filter which changes the shape of the voltage input signals so

they can be accurately measured. A phase offset potentiometer in the signal

conditioner circuit is adjusted to compensate for phase errors. (This adjustment is

factory set with identical bus and generator inputs. It should be readjusted only

where a phase offset has been caused through the line transformers of the

installation.) The signal conditioners also amplify the bus and generator signals

and apply them to the phase detector.

Operating Modes

A user-installed mode switch (single-pole, four-position) controls the relay driver.

The switch must be wired to synchronizer contacts 10 through 13 (see the plant

wiring drawing). The four positions are OFF, RUN, CHECK, and PERMISSIVE.

When the switch is OFF, the synchronizer is out of operation.

The RUN mode allows normal synchronizer operation and breaker closure

signals. The speed bias circuit continues to operate to maintain synchronization

for one second to allow time for the breaker closure signal. When one second

has elapsed, the lockout circuit activates to disable the synchronizer. The lockout

circuit is reset automatically when the relative phase angle exceeds the window

limit after the generator is disconnected from the bus.

The CHECK mode allows normal synchronizing and voltage matching, but does

not permit a breaker closure signal.
