5463-372 WOODWARD

Brand:  WoodWard

Model number:5463-372

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.85kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

5463-372   WOODWARD

INQUIRE NOW

Products Name: 5463-372 WOODWARD

PRODUCT DESCRIPTION

To prevent damage to electronic components caused by improper handling, read and observe the precautions in Woodward manual 82715, Guide for Handling and Protection of Electronic Controls, Printed Circuit Boards, and Modules.

Benefits:

Speed Bias Output

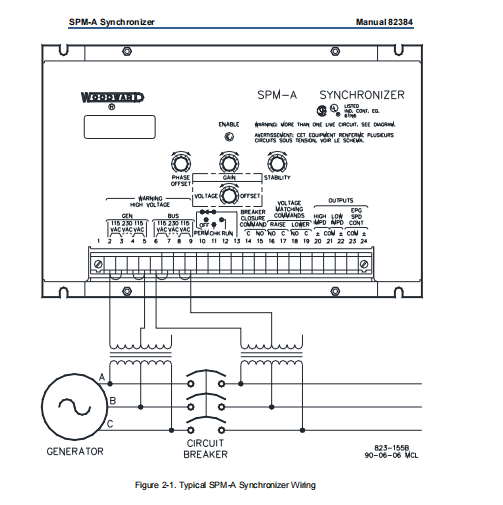

Make connections to synchronizer terminals as shown and connect the cable

shields to the control end only.

For single-unit 2301 application, use:

 High impedance—terminal 20 (±) and 21 (common).

For 2301A, Load Sharing Modules (LSM), EPG, 2500 load control systems, and

EGA or EGM with external resistors, use:

 Low impedance—terminal 22 (±) and 21 (common).

For EPG speed controls without load sensors, use:

 SPM-A terminal 24 (±) to EPG terminal 10;

 SPM-A terminal 23 (common) to EPG terminal 5.

Paralleling a Bus to a Bus

The synchronizer can be used to parallel an isolated bus to another bus, as

shown in Figure 2-2. Up to seven generators operating in parallel on an isolated

bus may be synchronized to another bus. In this case, the synchronizer's low

impedance output to the load sharing and speed control's SPM input is tied to

each control (through a resistor if the control is not normally connected to the low

impedance output). The resistor value is determined by the kind of control used

(refer to the table below). A resistor with a wattage rating between 1/4 and 1 watt

may be used. The resistor should be installed in the line from the synchronizer

output terminal designated ± (terminals 20, 22, or 24 depending on type of

control) and located close to the control to reduce noise pickup.

Type Control Acceptable Resistance

Value

Woodward Part

Number

2301 1.6 to 2.0 MΩ 1649-333

2500 Load Sensor No resistor required

EGA 196 to 226 kΩ 1649-605

EG Load Signal Control

or EGM 665 to 765 kΩ 1649-277

2301A No resistor required

Generator Load Sensor No resistor required

Sequentially Paralleling Generator to a Bus

Although the synchronizer can be switched to parallel generators in sequence to

a bus, Woodward Governor Company does not recommend this option.
