This chapter describes Auxiliary Devices that are available for the 3161 governor.
These devices are installed and calibrated at the factory before shipment to the
user. The shutdown devices may be added to a governor already in service
without any further modification to the governor.
Manual Title
03103 Manual Shutdown for the 3161 Governor
03104 Pressure Shutdown for the 3161 Governor
03105 Electric Shutdown for the 3161 Governor
03106 Pneumatic Speed Setting for the 3161 Governor (factory installed only)
03107 Speed Adjusting Motor with Manual Speed Adjustment (factory installed
only)
03109 Load Limit Assembly (factory installed only)
03110 Air Pressure Fuel Limiter (factory installed only)
To obtain additional Sales or Service information for these auxiliary devices,
contact Woodward or your authorized dealer or distributor.
Manual Shutdown

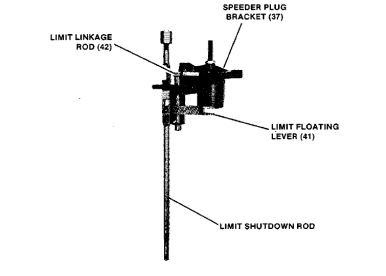

Figure 7-1
The manual shutdown assembly is installed on top of the right front corner of the
cover. To initiate a shutdown, the threaded shutdown handle can be pushed
down, or tilted in any one of 360 degrees to make contact with the shutdown rod.
The manual shutdown can also be used in conjunction with the electric or
pressure shutdown devices.
