9905-021 WOODWARD

Brand:  WoodWard

Model number:9905-021

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.85kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

9905-021   WOODWARD

INQUIRE NOW

Products Name: 9905-021 WOODWARD

PRODUCT DESCRIPTION

Do NOT use the minimum-fuel contact as a part of any emergency stop sequence. The emergency may be caused by a governor malfunction which would also cause a malfunction of the minimumfuel feature. Use of the minimum-fuel contact for an emergency stop sequence could cause overspeed of the prime mover and mechanical

damage and personal injury, including death.

Benefits:

Speed Control

The speed control box should be mounted on the control panel, often on the

same skid as the engine. It is not designed for installation on the engine. Provide

space for adjustment, wiring access, and ventilation. Choose a location that

protects the control from being bumped and that the wiring harness will reach.

The installation should allow for adequate air circulation to the control box and

have an ambient temperature of –40 to +75 °C (–40 to +167 °F).

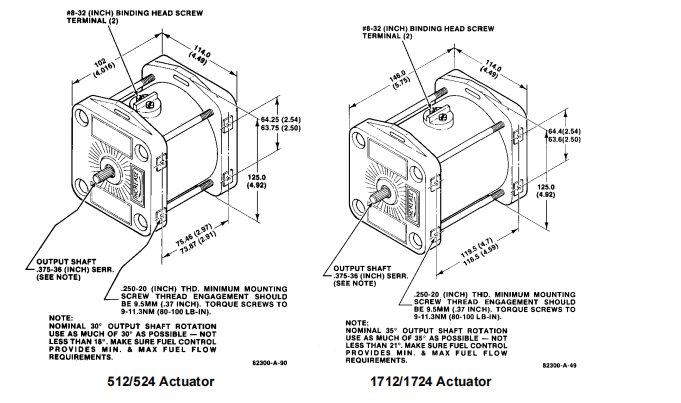

Actuator

Install the actuator solidly, and install a linkage with the correct configuration to

provide an almost linear relationship between change of actuator position and

change in engine power output. In most cases use about 2/3 of the actuator

rotation between minimum and maximum fuel. The engine fuel control usually

provides the minimum and maximum stops. The minimum and maximum stops

on the actuator may be used, if necessary (see Figure 2-1). If the actuator is

controlling the speed-setting shaft of a mechanical governor, use the actuator

stops to limit the travel of the linkage. Set the minimum stop for 5% below rated

speed at no load, and set the maximum stop for rated speed plus 3% more than

the droop of the governor. The actuator is designed to operated in ambient

temperatures of –40 to +82 °C (–40 to +180 °F). Installation should avoid sources

of excessive heat.

Do not pressure wash sealed bearings—you may force dirt inside

them, shortening their life. If the actuator is exposed to weather,

mount it with the clockwise end higher, if possible.

Magnetic Pickup (MPU)

Install the magnetic pickup on a rigid bracket or housing so its tip is near an

engine-driven gear. This gear must be made of a ferrous material that reacts to a

magnetic field. Adjust the MPU for 0.25 to 1.0 mm (0.010 to 0.040 inch) between

the gear and the MPU at the closest point.

Electrical Connections

Connect the system as shown in the appropriate wiring diagram (Figures 1-2,

1-3, 1-4). See the appropriate manual for wiring of accessories. Connect the

speed control to system ground.
