9907-004 WOODWARD Input module

Brand:  WoodWard

Model number:9907-004

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.85kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

9907-004   WOODWARD

INQUIRE NOW

Products Name: 9907-004 WOODWARD Input module

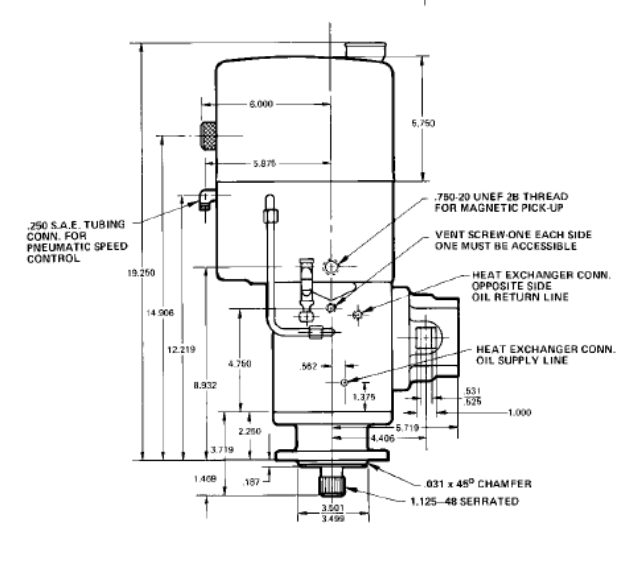

PRODUCT DESCRIPTION

Woodward has launched hardware and software updates to address many CIP requirements; however, complete NERC/CIP compliance involves more than the controls and is dependent on plant infrastructure and procedures. The physical security remains the user’s responsibility.

Benefits:

Compensation System

If the pilot valve plunger is lowered, pressure oil flows to the bottom of the power

piston pushing it up, lifting the terminal lever, which in turn rotates the output

shaft.

As the power piston moves up, the oil on top of the power piston is forced out

into the passage leading to the upper side of the buffer piston, and to the lower

side of the compensation land on the pilot valve. The buffer piston moves down,

partially relieving the compression of the upper buffer spring and increasing the

compression of the lower buffer spring. The force change of the buffer springs

tends to resist this movement, resulting in a slightly higher oil pressure on the

upper side of the buffer piston. This higher pressure is transmitted to the

underside of the compensation land of the pilot valve plunger. The pressure on

the lower side of the compensation land produces a force which acts to push the

pilot valve plunger back to its centered position.

The force of the pressure differential on the compensation land moves the pilot

valve towards its centered position. Due to the compensation forces, the pilot

valve re-centers, although the engine speed is not back to normal. Leakage of oil

through the needle valve orifice equalizes the pressures above and below the

compensation land, and allows the engine speed to return to normal. As the

pressures above and below the compensation land become equal, the buffer

springs return the buffer piston to the centered position.

Speed Droop

The 3161 governor is an isochronous governor with the ability to operate in the

droop mode by the adjustment of the internal droop pivot pin. The governor may

be used in the droop mode to allow for load division between two or more prime

movers connected to a single shaft or for operating in parallel.

The droop pivot pin is attached to the terminal lever located inside the governor.

if droop has been set, the following occurs: As the output shaft of the governor

rotates in the increase direction, the compression of the speeder spring is

reduced, which in turn reduces the governor speed setting. The speed of the

prime mover is reduced as load is applied. As the output shaft of the governor

rotates in the decrease direction, the compression of the speeder spring is

increased, which raises the speed setting of the governor as load is decreased.

Limit/Shutdown Pilot Valve

Shutdown of the prime mover is accomplished with the limit/shutdown pilot valve.

With the prime mover running on speed, the ballhead pilot valve is in the

centered position. When the limit/shutdown pilot valve is lowered, pressure oil

above the control land of the ballhead pilot valve is drained back to the sump

area. As prime mover speed begins to slow, ballhead flyweights move in,

lowering the ballhead pilot valve plunger. Oil under the power piston is then

drained to the sump area. As the power piston moves down, the output shaft is

rotated in the decrease direction, and the prime mover is shut down.
