9907-1182 WOODWARD

Brand:  WoodWard

Model number:9907-1182

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.85kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

9907-1182   WOODWARD

INQUIRE NOW

Products Name: 9907-1182 WOODWARD

PRODUCT DESCRIPTION

All other units in the engine control system must be adjusted and working correctly before operating the synchronizer. While operating the engine to make

adjustments on the other units, the synchronizer mode switch (user supplied) must be in the OFF position.

Benefits:

 Manual Control knob on governor

 Pneumatic Direct or reverse. With 21 kPa (3 psi) minimum and 690 kPa (100 psi)

maximum control air pressure. Ratio of max. to min. air control signal

pressure must be greater than 2.5 to 1, but less than 10 to 1. Typical

pneumatic ranges are 21 to 103 kPa (3 to 15 psi) and 69 to 414 kPa (10 to

60 psi). 0.25 inch (6.4 mm) SAE air connection.

Bellows Selections (for pneumatic speed setting)

Bellows 400 mm² (0.62 in²) 194 mm² (0.3 in²) 77 mm² (0.12 in²)

 Max signal pressure 138 kPa (20 psig) 138 to 345 kPa (20 to 50 psig) 345 to 827 kPa (50 to 120 psig)

 Min signal pressure 21 kPa (3 psig) 48 kPa (7 psig) 69 kPa (10 psig)

Governor Drive

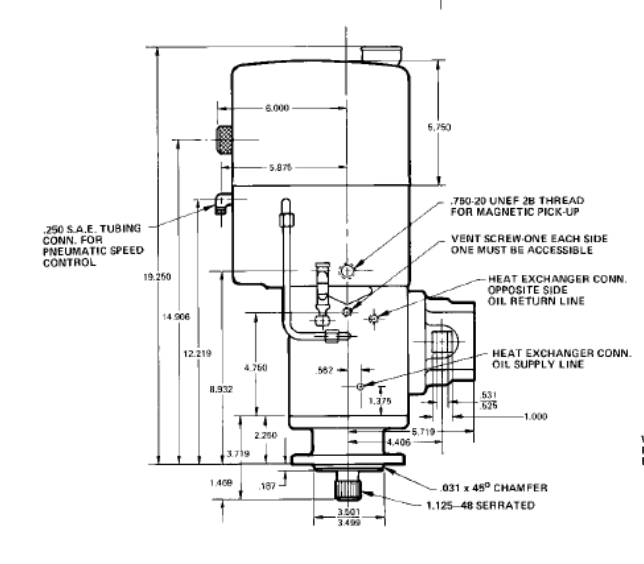

 Input Shaft Keyed or 1.125” - 48 serrated.

 Recommended Speed Range 250 rpm minimum to 1000 rpm maximum. Speeds in excess of 1000 rpm

are available but require single direction rotation. Oil coolers may also be

required. Please consult Woodward.

 Maximum Speed Range The absolute minimum speed is 200 rpm. The absolute maximum speed is

1600 rpm.

 Power Requirement Drive power for different types of PG governors will vary depending upon

speed, internal pump pressure, pump volumetric displacement, pump

efficiency, and oil viscosity. Contact Woodard if further information is

required.

 Rotation Fixed clockwise, fixed counterclockwise, or reversible

Output

 Power Cylinder Type and Travel Linear with 1-inch (25 mm) maximum travel or rotary with 30 degrees

maximum travel. When making connection to engine or turbine linkage, use

2/3 of the available governor terminal shaft travel between no load and full

load. Split overtravel at each end so that the governor can shut down the

prime mover and also give maximum fuel when required.

 Maximum (stalled) Work Capacity:

 Governor Operating Oil Work Capacities

 Pressure Servo 16 J (12 ft-lb) Servo 39 J (29 ft-lb) Servo

 690 kPa (100 psi) (std.) 16 J (12 ft-lb) 39 J (29 ft-lb)

 1379 kPa (200 psi) 33 J (24 ft-lb) 79 J (58 ft-lb)

 Usable Work Standard governors, 11 J (8 ft-lb) or 2/3 of maximum work

Pilot Valve

 Plunger Movement Balanced between ballhead centrifugal force and speeder-spring force

 Bushing Rotated integrally with governor drive shaft

 Porting 4 round or 3 slotted

Control Characteristics

 Steady State Speed Band ±0.25% of rated speed (under normal operating conditions)

 Ballhead Assemblies Solid or spring driven oil damped

 Operating Temperature Continuous operating temperature is 60 to 93 °C (140 to 200 °F). Consult

Woodward beyond these limits. Hydraulic pour point must be below lowest

expected starting temperature.

Hydraulic System

 Oil SAE 10 to 50 oil depending on temperature

 Viscosity 100 to 300 SUS under normal operating conditions

 Self-Contained Sump Capacity Approximately 1.4 L (1.5 qt)

 Relief Valves 690 to 1379 kPa (100 to 200 psi)

 Operating Pressure 690 kPa (100 psi) normal, 1379 kPa (200 psi) optional
