The 505E is a field configurable steam turbine control and operator control panel

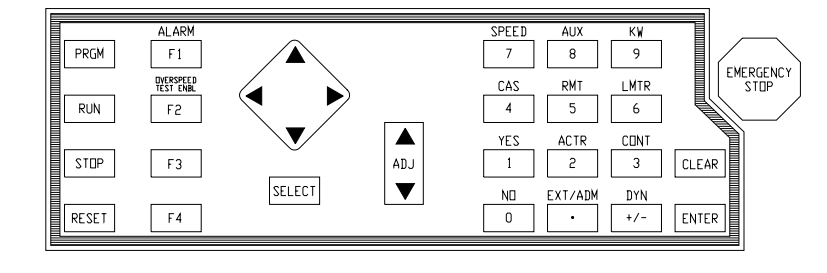

(OCP) integrated into one package. A comprehensive operator control panel,
including a two- line (24 characters each) display, and a set of 30 keys is located
on the 505E’s front panel. This OCP is used to configure the 505E, make OnLine program adjustments, and operate the turbine/system. Easy to follow
instructions are presented in English through the OCP’s two-line display and
operators can view actual and setpoint values from the same screen.
Two speed inputs which are jumper configurable for MPU (magnetic pickup
units) inputs or proximity probes.
Six analog inputs are available. One is dedicated as the extraction/admission
input. The remaining five are configurable. The sixth analog input has isolation
circuitry and should be used for a self-powered signal that is not isolated.
Sixteen contact inputs are available. Four are dedicated for shutdown, reset,
raise speed setpoint, and lower speed setpoint. Another two contact inputs must
be dedicated for generator breaker and utility tie breaker if the control is used in
a generator application. Ten additional contact inputs can be configured. If the
unit is not used in a generator application, then twelve additional contact inputs
can be configured.
Four function keys on the front panel of the control. F1 and F2 are dedicated to
alarm and overspeed test, respectively. F3 and F4 can be used to enable or
disable various functions of the control.
