WOODWARD 8400-015

Follow these precautions when working with or near the control.

1. Avoid the build-up of static electricity on your body by not wearing clothing

made of synthetic materials. Wear cotton or cotton-blend materials as much

as possible because these do not store static electric charges as much as

synthetics.

2. Do not remove the printed circuit board (PCB) from the control cabinet

unless absolutely necessary. If you must remove the PCB from the control

cabinet, follow these precautions:

• Do not touch any part of the PCB except the edges.

• Do not touch the electrical conductors, the connectors, or the

components with conductive devices or with your hands.

• When replacing a PCB, keep the new PCB in the plastic antistatic

protective bag it comes in until you are ready to install it. Immediately

after removing the old PCB from the control cabinet, place it in the

antistatic protective bag.

DYNA 8000, DYNA 8200, and DYNA 8400 governor systems provide engine

governing for speed and power control of piston and gas turbine engines or

steam and water turbines. The system components are a rotary actuator and an

electronic controller, both of which are described further in this manual.

ACTUATOR

The actuator consists of an electromagnet with an iron armature rolling on the

center shaft bearings. The actuator is provided with a return spring which

balances the magnetic force of the armature. When DC current flows in the coil,

the magnetic force moves the armature in the stator and this linear motion is

transformed into rotary motion through a crank arm that forms part of the output

shaft.

CONTROLLER

The electronic controller is the information processing unit of the governor

assembly. It contains electronic components which process the input signal from

the magnetic pickup to command the engine to the desired speed/RPM set into

the controller. Electronic adjustments are available on the controller for field

adjusting the unit as necessary.

DC POWER SOURCE

The governor system receives its power from a battery or an AC to DC power

supply supplying 12 or 24 Vdc ± 20% to match the governor voltage. The

average operating current consumption is 2.5A to 3.5A and the highest

consumption is 14.75A during engine start-up or during a large load change.

The power source must be rated above maximum stall current.

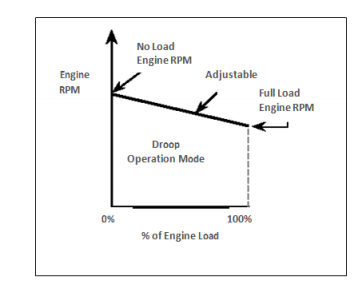

ISOCHRONOUS OPERATION

Isochronous operation is obtained by setting DROOP potentiometer fully

counterclockwise. The DYNA governor is all electric, and it is normally operated in

the isochronous mode; i.e., engine RPM is constant (± 0.25%) under steady state

load conditions, up to the engine's maximum capability, regardless of load on the

engine
