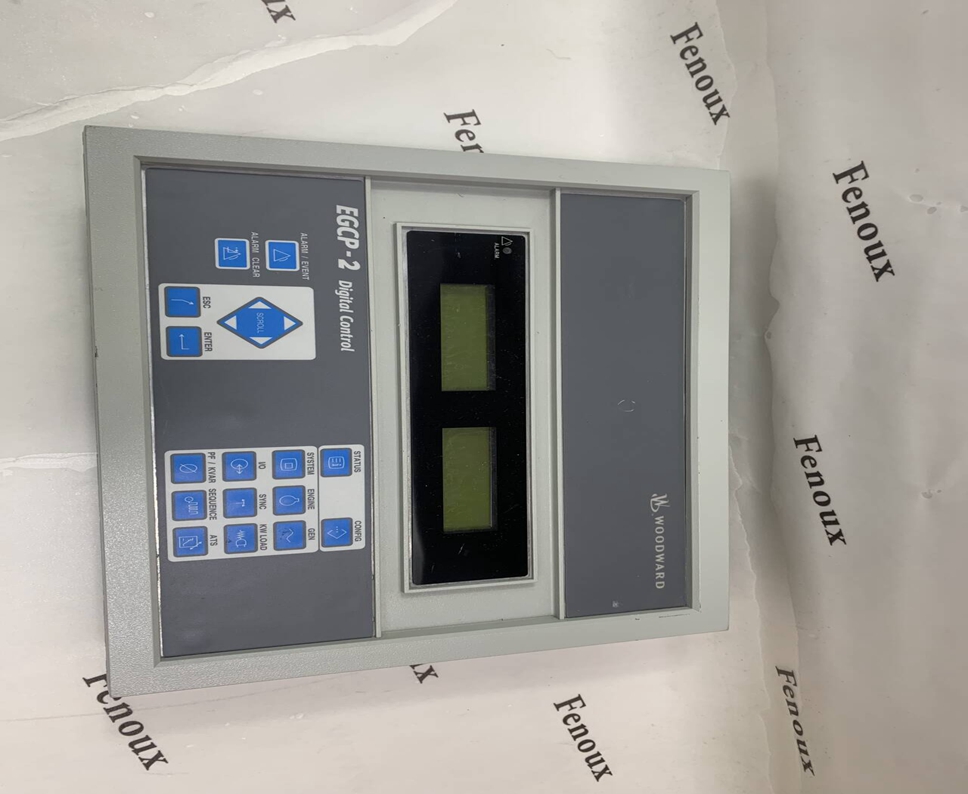

Woodward 8406-116

Do not tin (add solder to) the wires that terminate at the EGCP-2

terminal blocks. The spring-loaded CageClamp terminal blocks are

designed to flatten stranded wire, and if those strands are tinned

together, the connection loses surface area and is degraded.

Grounding for Protection Against Electric Shock

Protective Earth (PE) must be connected to the termination point on the backside of the unit next to the

label with the symbol (or 1 of 3 other like termination points without label) to reduce the risk of electric

shock. The EGCP-2 ships with 2 thread forming screws (M4 x 6 mm, Woodward #1029-525) for this

connection. The conductor providing the connection must have a properly sized ring lug and wire larger

than or equal to 3.0 mm² (12 AWG).

Recommended Grounding Practices

Providing the proper ground for the EGCP-2 is important. Improper connection of the EGCP-2 chassis to

the ground plane may lead to stray currents between the reference point for the AC signal sources

(current and voltage transformers), and the reference point for the sensing inputs on the EGCP-2.

Differences in potential between these two points results in equalizing current flow which then produces

unacceptably high common mode voltages. Common mode voltages may result in improper readings for

the sensed AC inputs, or even damage to the EGCP-2 product in extreme cases. To minimize this

problem, it is necessary to provide a low resistance path between the AC signal reference point, and the

chassis of the EGCP-2. Typically,this point is the designated ground for the generator set and related

instrument transformers.
